Still Spirits Create+ SS Boiler 25L - new
The Create+ Boiler 25 L is the recommended boiler base for use with the Create+ T500 Column & Condenser and the Create+ Alembic Copper Dome & Condenser. With a maximum capacity of 25 litres, the Boiler 25 L is designed for distillers seeking precise control and versatile functionality.

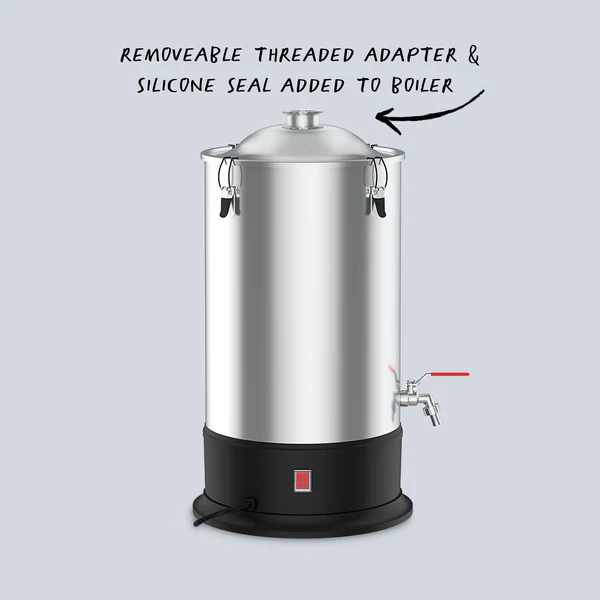

It features dual element control switches to provide more control during distillation. The Boiler 25 L comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so your customers can experiment with different setups and attachments.
Key Features:
Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W (1600 if using a US/CA unit). When one switch is in the OFF position, it will only consume 1100W (or 1100W/500W if using a US/CA unit) of power.
- Boil dry reset
- Thermal cut out fuse
- Waste discharge tap with a stainless-steel ball valve
- Boiler lid with 48 mm opening
- 25 L Boiler capacity
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.
What's Included:
- Create+ Boiler 25 L
- Create+ Boiler Lid
- 2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
- Instructions
Specifications:
Boiler:
- Capacity: 25 L
- Dimenions: H 64 cm x W 36 cm x D 37 cm
- Weight: 5.42 kg
- Power: 2000W (1600W for US/CA Units)
- Warranty: 3 years
- Create+ Threaded Adapter Set
- Dimensions: 80mm x 80mm x 65mm
- Weight: ~400g Approx.
NOTE: The Threaded Adapter is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
A total column & condenser weight up to 11 kg (24 lbs), including uop to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.
